EEGLD- Gas Leak Detector Features:

Dual Relay System: Controls ventilation equipment such as fans, valves, and louvers, and connects to warning devices or control panels for real-time alerts.
Flexible Outputs: Provides a 4-20mA current loop for integration with other monitoring systems.
Factory Calibration: Units are factory calibrated, with ETTER offering annual calibration services or kits as required to ensure continued performance.
Rugged and Reliable: Both models feature durable enclosures, ensuring long-lasting operation in demanding environments.
Alarm Relay Options: Selectable N.O. (normally open) or N.C. (normally closed) alarm relay settings, with adjustable alarm thresholds within the sensor range.

Let’s Work Together

Our team of expert engineers are ready to provide the precision and reliability your operations deserve. Contact us today for a quote on your next project.

+8605848842

info@etterengineering.com

210 Century Drive, Bristol, CT 06010

Contact us now!

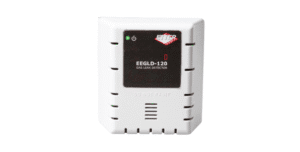

EEGLD - Gas Leak Detector

The ETTER Engineering SafetyWorx EEGLD-120 and EEGLD-024 are advanced dual relay gas detectors, controllers, and transducers designed to monitor and control hydro-carbon gas concentrations. These electronic systems are essential for reducing explosive gas risks in commercial, industrial, and institutional applications that use gaseous fuels. Both models provide reliable feedback and automated control to ensure safety in environments prone to combustible gas leaks.

  • EEGLD-120: Powered by line voltage (100-240VAC, 50-60Hz), this model offers a selectable 4-20mA output, buzzer, and digital display. It detects and measures combustible gas concentrations, helping prevent hazardous situations.
  • EEGLD-024: A low-voltage version, the EEGLD-024 operates on 12-24VAC or 12-32VDC. It also includes a selectable 4-20mA output, buzzer, and digital display for easy integration into monitoring systems.

Installation & Coverage:

  • Mounting: Designed to mount on a standard 4” x 4” electrical box. The units can be installed on ceilings or walls, with placement at least 3 feet away from the highest point if on a peaked ceiling. Ensure the unit is not placed in corners or areas with stagnant air.
  • Commercial/Institutional spaces: Covers up to 900 sq. ft., depending on air movement and facility layout.
  • Environmental Range: Operates effectively in environments ranging from 0°F to 125°F, with 10-90% non-condensing relative humidity.
Boiler Stop sketches

EEGLD-120 Specifications:

  • Power: 120-240VAC (50-60Hz)
  • Current: 1.0A MAX
  • Size: 4 1/2 x 4 1/2 x 2 1/8 in.
  • Shipping Weight: 1 lb
  • Alarm Relay: 0.5A 120V, 60VA
  • Alarm Relay Settings: Selectable N.O. or N.C.
  • Current Loop: 4-20mA for percentage LEL (Lower Explosive Limit)
  • Operating Environment: 0°F to 125°F, 10-90% RH non-condensing

EEGLD-024 Specifications:

  • Power: 12-24VAC or 12-32VDC (3W max)
  • Current: 75mA (alarm), 50mA (relay on), 23mA (standby)
  • Size: 4 1/2 x 4 1/2 x 2 1/8 in.
  • Shipping Weight: 1 lb
  • Alarm Relay: 0.5A 120V, 60VA
  • Alarm Relay Settings: Selectable N.O. or N.C.
  • Current Loop: 4-20mA for percentage LEL (Lower Explosive Limit)
  • Operating Environment: 0°F to 125°F, 10-90% RH non-condensing
