E101-P​HC

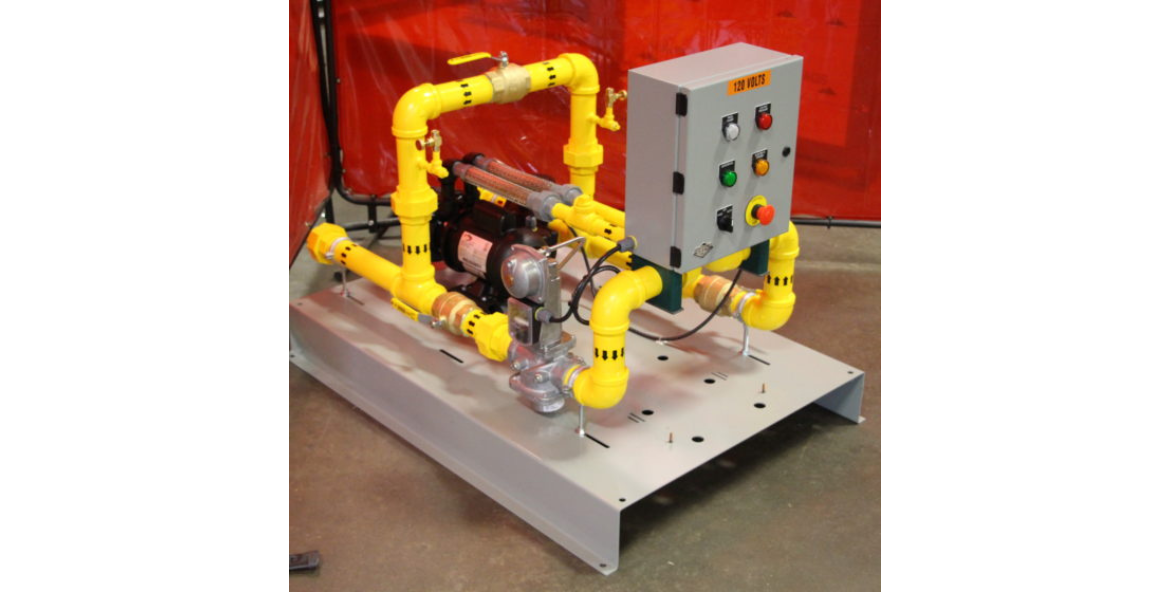

E101-PHC – High capacity, magnetically coupled Plug and Play Gas Booster System.

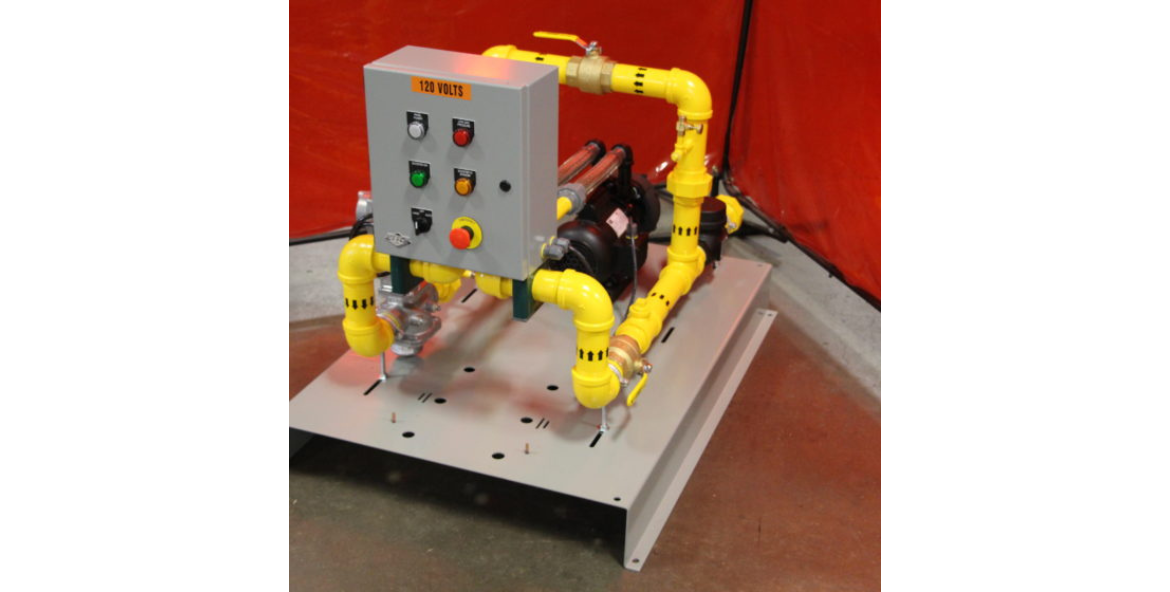

E101-PHC – High capacity, magnetically coupled Plug and Play Gas Booster System.

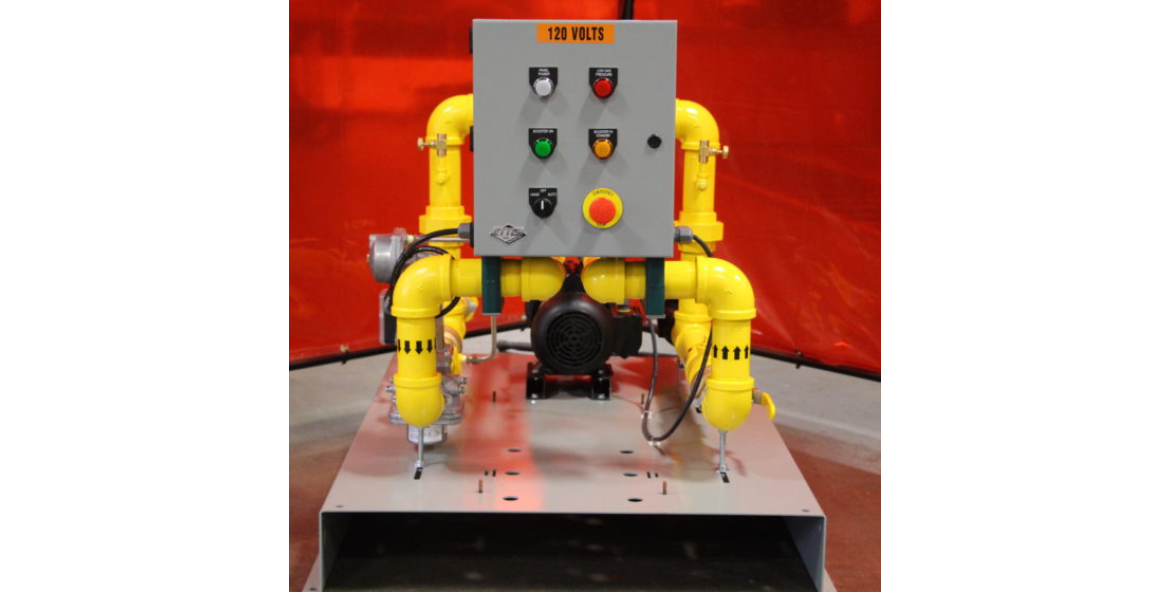

E101-PHC – High capacity, magnetically coupled Plug and Play Gas Booster System.

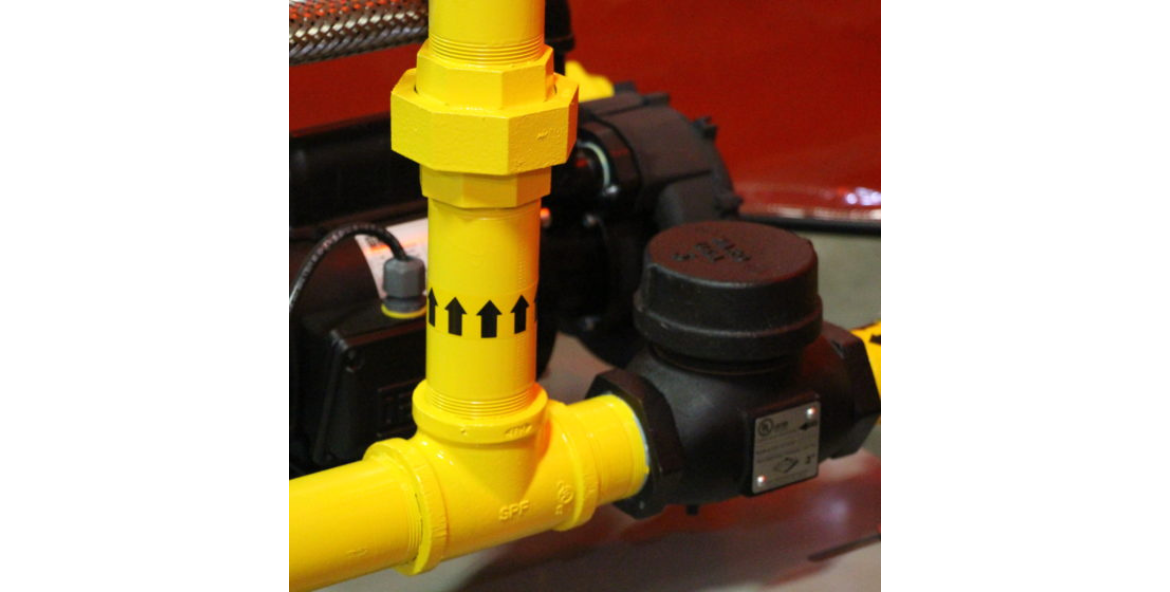

E101-P detail photo
Booster Worx logo

E101-PHC Features:

Overview: Big brother to the E101-P with larger capacity up to nominally 1,600 CFH.
Materials: Metal skid-style frame with all components pre-mounted and wired.
Power: Smart Uninterruptible Power Supply (Smart UPS) for backup power.
Approvals: UL/CSA approved gas booster pump and components.
Motor: 1/3 HP TEFC motor (120/1/60)
Installation: The E101-PHC is a “Plug and Play” unit, pre-piped, wired, and tested to ensure seamless installation right out of the box.
Details: 2″ NPT union or flanged ends for easy inlet and outlet installation.
Capacity: 0 to 1600 CFH
Flow Rate: No minimum flow rate requirement – pump can be safely dead-headed without any adverse effects.
Bonus: Pre-plumbed check valves, bypass, and low gas pressure switch for added convenience. Utilizes our Mode R regulated outlet pressure, with Auto System ON-OFF based on sensed building demand. Optional Smart Uninterruptible Power Supply (Smart UPS) for backup power.

Download PDFs

Download our document to see specific data of the service and how we work.

E101-PHC Sell Sheet
1.25M

Booster Worx: E101-PHC

The ETTER Engineering E101-PHC packaged gas booster system is designed for pumping low volumes of non-corrosive gas, ideal for situations where an increase in pressure is needed from the available line pressure. This system is perfect for applications where gas is not corrosive to aluminum or steel.

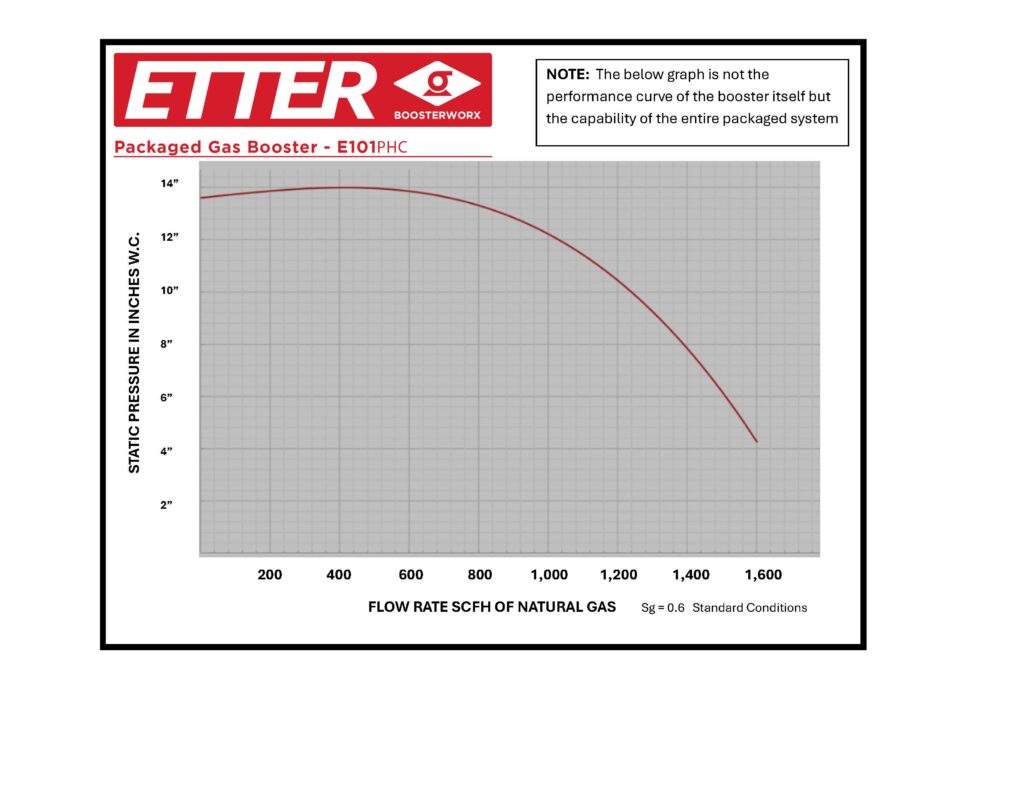

The E101-PHC features a magnetic coupled drive mechanism with no shafts or seals, effectively eliminating any potential leak paths for improved reliability and reduced maintenance needs. It has a capacity range of 0 to 1500 CFH and offers a maximum available pressure of 15″ W.C. added to the inlet pressure. An outlet gas pressure regulator maintains a consistent outlet pressure over varying flow rates. Performance data for the high-capacity model can be found on the sizing curve.

Designed as a “Plug and Play”™ unit, the E101-PHC comes fully pre-piped, wired, and tested, ensuring a smooth and hassle-free installation process tailored to your application.

UL-Approved Control Panel Includes:

Our streamlined, pre-tested system offers efficiency, ease of installation, and long-term reliability for your gas boosting needs.

  • Lights and push buttons for easy operation
  • Operating interlocks for safety
  • Motor starter, circuit breakers, and control relays for reliable function

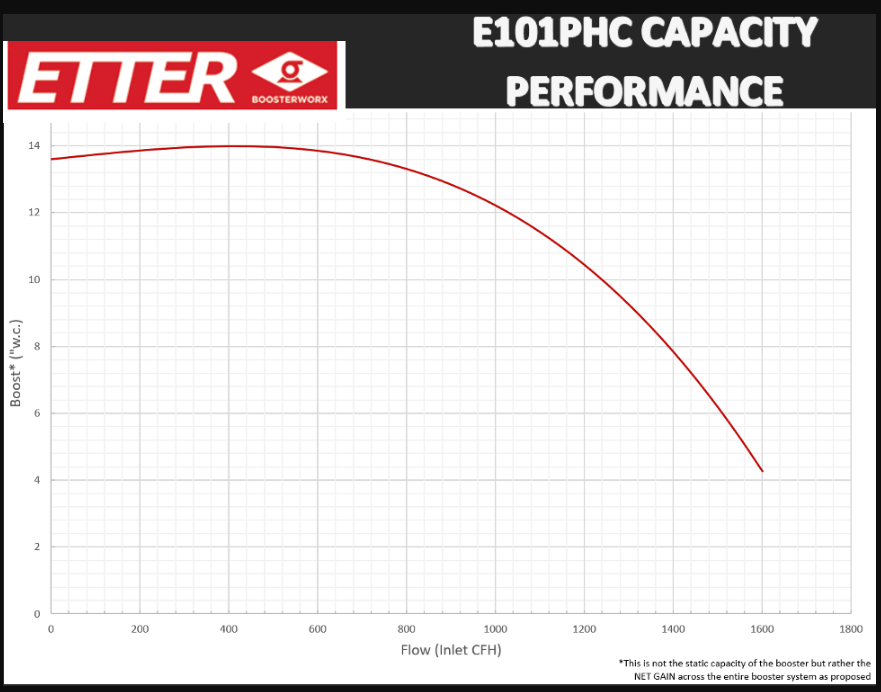

E101-PCH Flow Chart
Approvals

Except for the UL listing, the approval agencies listed above are region-specific. If your local agencies require additional documentation beyond our UL listing, please contact ETTER Engineering for further assistance.

ETTER achieves UL-508A Certification national grid logo Mass.gov logo con edison logo

BoosterWorx: Product Line

Our BoosterWorx systems are designed for flexibility, ensuring they can meet the unique specifications of any application. These fully packaged, “Plug and Play”™ systems arrive at your site pre-assembled and ready for immediate use, simplifying installation and minimizing downtime.

In addition to the boosters themselves, ETTER offers a full range of accessories, including check valves, to make your installation process smooth, efficient, and cost-effective.
