E101-P HTD

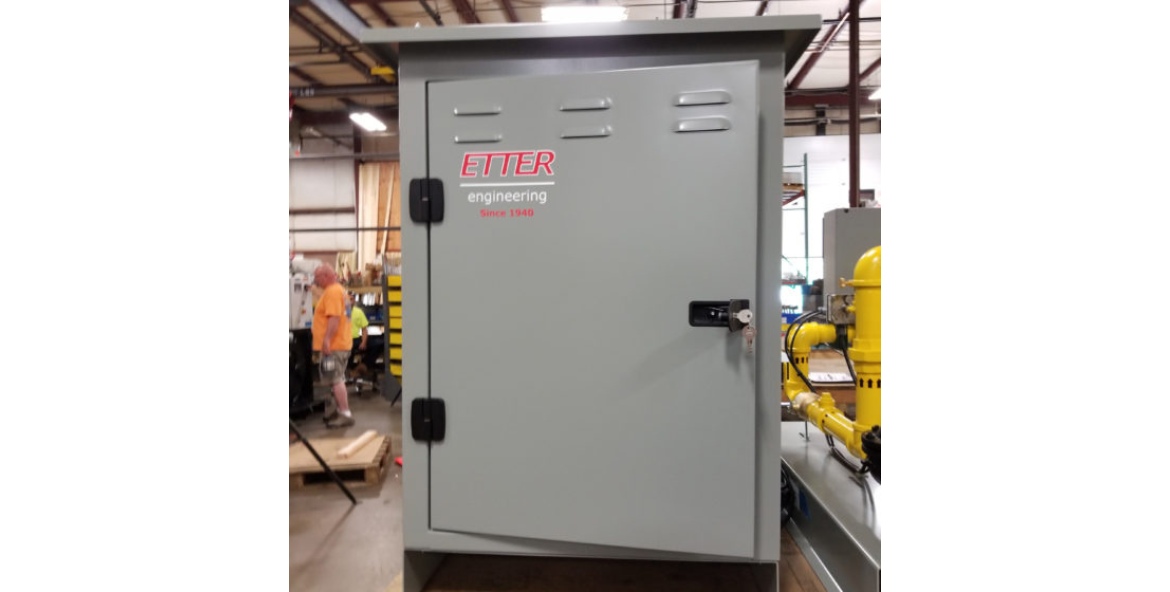

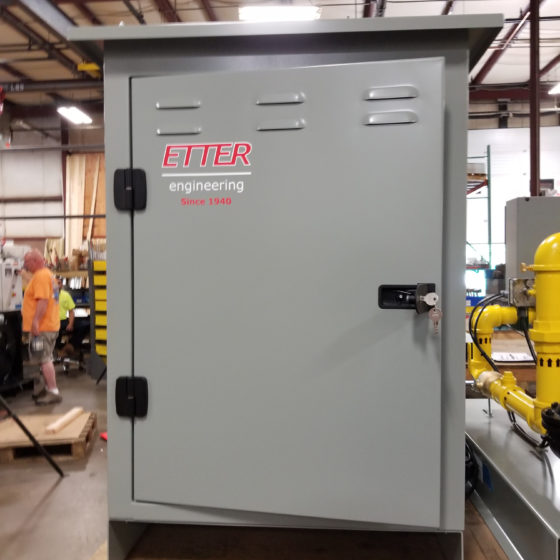

The E101-P-HTD is designed to pump low volumes of non-corrosive gas, typically used when an increase in pressure is needed from the available line pressure. Ideal for critical applications like Emergency Standby Generators, this system is built to perform in extreme weather conditions. It comes fully enclosed in a welded steel transclosure, providing complete protection from the elements and featuring locking keyed doors to prevent unauthorized access.

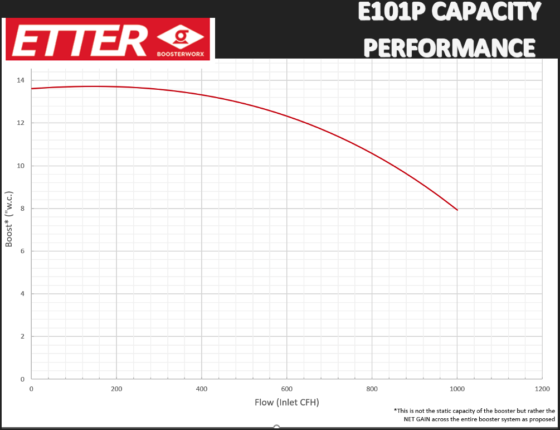

Equipped with an integrated Smart Uninterruptible Power Supply (Smart UPS), the E101-P-HTD ensures reliable performance by delivering true sine wave electrical output during power interruptions. This system also features a magnetic coupled drive mechanism, eliminating the need for shafts or seals, which prevents potential leak paths and improves overall reliability. The E101-P-HTD has a capacity range from 0 to 1000 CFH, with a maximum available pressure of **15″ W.C. added to the inlet pressure. It also includes an outlet gas pressure regulator that maintains a consistent outlet pressure across a range of flow rates.

Designed as a “Plug and Play”™ unit, the E101-P-HTD arrives pre-piped, wired, and tested, making installation quick and easy. Key features of the system include a quality welded steel transclosure with lockable hinged doors for easy access, the Smart UPS for backup power, and an integral lock-up style gas pressure regulator with field-adjustable settings. The transclosure also houses a heated zone to protect the UPS, ensuring functionality even in cold environments.
