E101-P

E101P New Touchscreen 1
E101P New Touchscreen 2
BoosterWorx E101-P for indoor generator projects with UPS (Uninterrupted Power Supply).

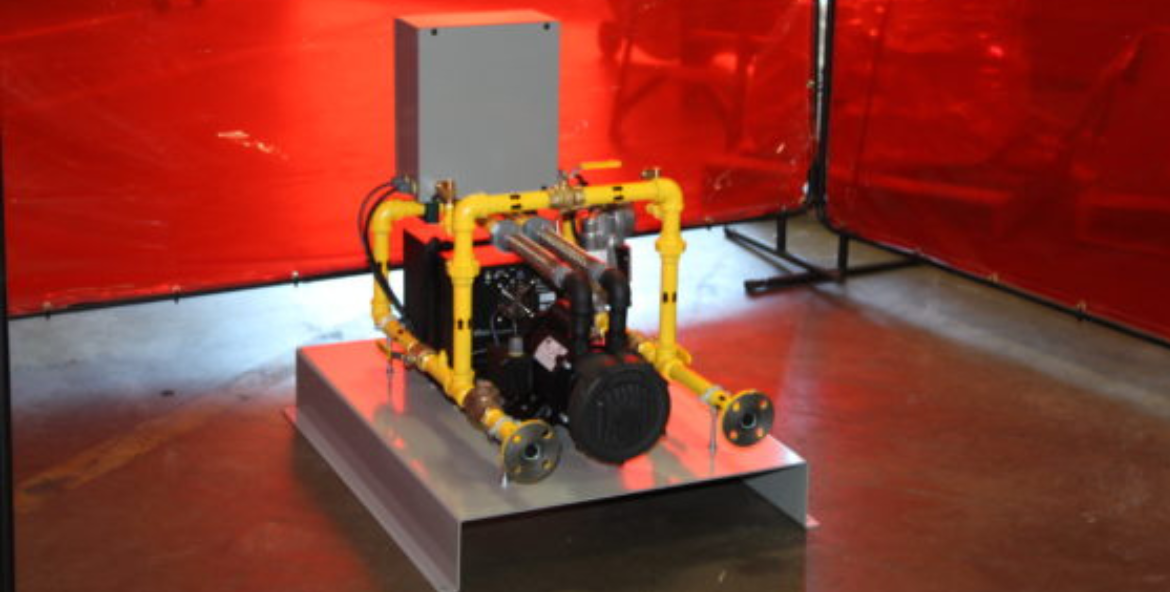

E101-PHC – High capacity, magnetically coupled Plug and Play Gas Booster System.

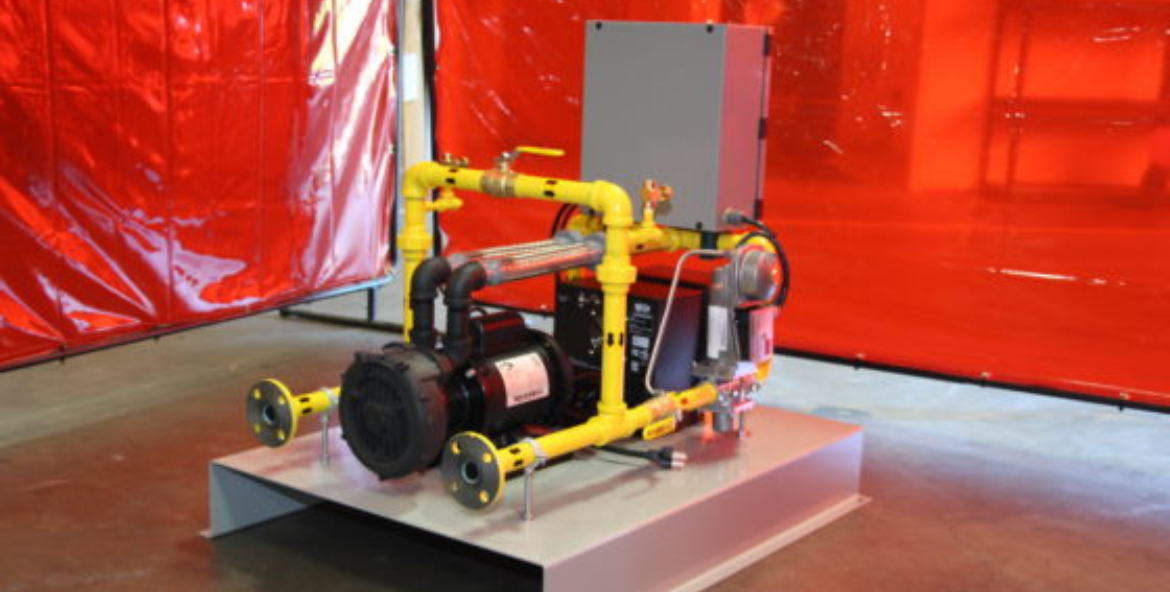

E101-P Gas Booster System – Plug and Play.

E101-P Features:

Overview: ETTER's most compact packaged gas booster system with capacities up to 1,000 CFH.
Construction: Heavy-duty metal skid-style frame with all components factory mounted, piped, and wired.
Power: 115V/1/60
Controls: PLC-based touchscreen HMI with plain-English diagnostics, alarm history, real-time I/O monitoring, and remote support capability.
Approvals: UL/CSA approved gas booster pump and components.
Motor: 1/3 HP TEFC motor (120/1/60)
Installation: Plug & Play package arrives fully assembled, pre-piped, pre-wired, and factory tested.
Flow Rate: No minimum flow requirement—the booster can safely dead-head without adverse effects.
Standard Features: Hermetically sealed magnetic-coupled drive, pre-plumbed check valves, bypass piping, low gas pressure switch, and ETTER's Mode R regulated outlet pressure with automatic system ON/OFF based on building demand.
Optional Features: Smart UPS backup power, gas leak detection, BACnet communications, outdoor enclosures, remote owner monitoring, and additional control packages.

Download PDFs

Download our document to see specific data of the service and how we work.

E101-P Booster Product Sheet
2MB

Booster Worx: E101-P

The Booster Worx E101-P is ETTER Engineering’s compact packaged gas booster system, designed to deliver reliable gas pressure for mechanical rooms, retrofit projects, boilers, generators, ovens, and other low- to moderate-flow applications. Built on a rugged metal skid-style frame, each system arrives pre-piped, pre-wired, and factory tested for true Plug & Play installation.

Engineered for dependable operation, the E101-P features a hermetically sealed, magnetic-coupled gas booster that eliminates shaft seals and potential leak paths. Powered by a 1/3 HP TEFC motor and built with UL/CSA approved components, the system delivers safe, reliable performance with minimal installation time.

Every E101-P now comes standard with a PLC-based touchscreen HMI, providing operators with enhanced system visibility, plain-English fault diagnostics, alarm history, and real-time input/output monitoring for faster troubleshooting. ETTER also includes remote connectivity for factory technical support, with optional remote monitoring available for end users.

Additional features include 1″ NPT union connections for easy installation, no minimum flow requirement, pre-plumbed check valves, bypass piping, and a low gas pressure switch for added protection and reliability.

Approvals

Except for the UL listing, the approval agencies listed below are region-specific. If your local agencies require additional documentation beyond our UL listing, please contact ETTER Engineering for further assistance.

ETTER achieves UL-508A Certification national grid logo Mass.gov logo square cropped con edison logo

BoosterWorx: Product Line

Our BoosterWorx systems are designed for flexibility, ensuring they can meet the unique specifications of any application. These fully packaged, “Plug and Play”™ systems arrive at your site pre-assembled and ready for immediate use, simplifying installation and minimizing downtime.

In addition to the boosters themselves, ETTER offers a full range of accessories, including check valves, to make your installation process smooth, efficient, and cost-effective.
